In Part 2, we saw how repetitive work, occupational injury reports and controversy over RSI exposed an uncomfortable truth: the equipment used every day deserved closer scrutiny.
But not every inventor waited for the crisis to make headlines. From the late 1970s into the early 1990s, designers challenged the assumption that a keyboard must resemble the typewriter. They experimented with sculpted key wells, finger-oriented columns, separated hand positions and even individual finger controls. This was the first great opportunity to break the Ghost's hold on keyboard geometry.
The Revolution Was About Physical Geometry
Conventional keyboards inherited two distinct design decisions: the functional arrangement of letters and the physical placement of the keys. An alternative keyboard can retain QWERTY while changing the physical geometry; another can change both.
That distinction matters because a keyboard that merely rotates two staggered sections is not the same engineering intervention as one that reorganizes keys around the fingers. Both can be useful. But they address different aspects of the interaction between hands and equipment.
The innovators below did not all pursue the same answer. What united them was their willingness to question the keyboard's physical form instead of accepting it as permanent.
Four Pioneers Who Refused the Typewriter Blueprint
Stephen Hobday and keyboard-training specialist Lillian Malt challenged conventional keyboard design from different professional perspectives. According to Maltron's own history, their first keyboard was demonstrated at the News Tec exhibition in December 1976; PCD Maltron was established in 1977.

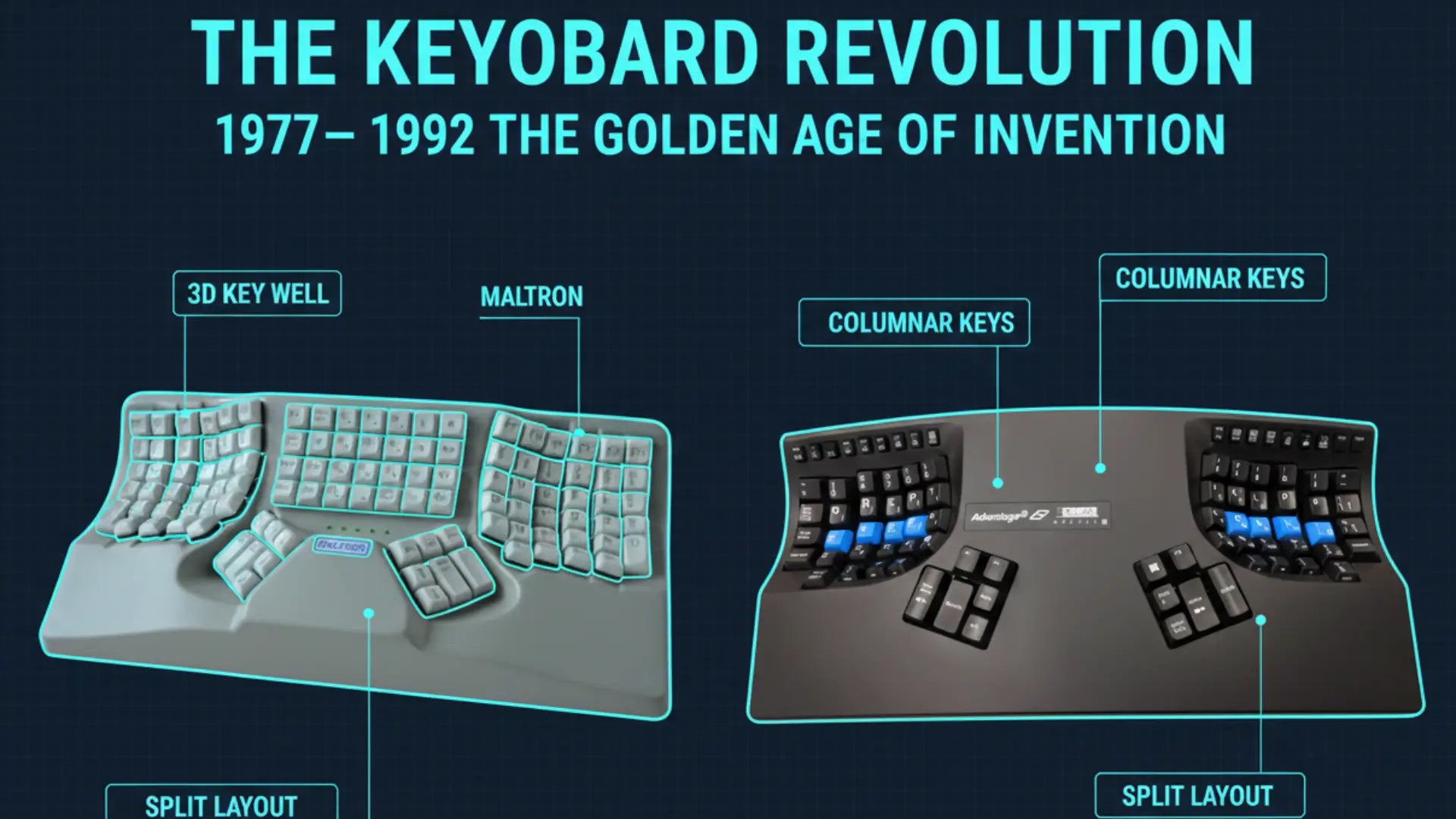

The defining departure was the three-dimensional, hand-contoured typing area. Instead of treating every finger as though it had the same length and preferred reach, Maltron developed sculpted left- and right-hand key clusters, with important functions assigned to the thumbs. Its product history also includes non-QWERTY letter arrangements: a reminder that physical geometry and letter mapping are independent design choices.
The engineering leap: The keyboard could be built around hand dimensions and finger movement rather than around a flat, diagonally staggered grid. Maltron's historical account.
NEC announced the M-System in March 1983 and commercialized it for the PC-8800 series as PCWORD-M in August 1983. Its goal was not simply to look more ergonomic. It addressed a specific human-computer interaction problem: how to enter Japanese text more efficiently.
Designed around the work of Masasuke Morita, the system used two hand-positioned groups of three rows by five columns—30 keys in total. Its input method combined consonant and vowel operations performed by different hands. NEC's system therefore challenged both the standard keyboard's physical arrangement and the conventional approach to Japanese text entry.
The engineering leap: A major computer manufacturer commercialized an input system in which the keys and the method of typing were designed together for a particular language task. Information Processing Society of Japan Computer Museum.
Inventor Dale Retter and collaborator Leland Knight described DataHand in a 1989 human-factors conference paper. Commercial versions followed around 1990. Where Maltron sculpted the keyboard, DataHand questioned whether fingers should travel across rows of keys at all.
Each finger rested within its own small control area and could make directional movements or a downward press. The mechanism used optical sensing with magnetic return. Separate hand units and adjustable finger controls represented a radical alternative to the familiar keyboard surface.
Claims that DataHand eliminated wrist movement or prevented injury go beyond what the basic design history establishes. Its importance here is more fundamental: it demonstrated the feasibility of a nontraditional input architecture that placed individual finger movement at the center of the engineering.
The engineering leap: Typing did not have to mean extending fingers toward distant physical keys. Knight & Retter's 1989 technical paper · HCI Museum exhibit.
Kinesis, founded in 1991, commercially launched its first contoured keyboard, the Model 100, in 1992. Like earlier sculpted keyboards, it placed the main typing keys in curved, column-oriented wells and moved frequently used functions to dedicated thumb-key areas.
The Kinesis approach preserved a familiar QWERTY letter assignment while making a substantial change to the keyboard's physical arrangement. It therefore offered a different path from both a traditional staggered keyboard and a conventional split-staggered model.
The engineering leap: An alternative to row-staggered geometry reached the commercial American computer market without requiring users to relearn the entire alphabet mapping. Kinesis company history.
Not Four Versions of the Same Idea
Calling every unusual keyboard “ergonomic” can hide the very differences engineers ought to study. These four pioneers addressed separate constraints:
| Design | Primary physical idea | What changed beyond the conventional stagger |
|---|---|---|
| Maltron | Sculpted key wells | Finger-oriented key positions and dedicated thumb controls |
| NEC M-System | Two compact 3 × 5 groups | Input arrangement designed alongside the Japanese typing method |
| DataHand | Individual directional finger controls | Replaced conventional key-to-key finger travel with localized actions |
| Kinesis Model 100 | Concave, column-oriented key wells | Finger-length accommodation and thumb-operated functions |
These devices were not interchangeable solutions, and none should be declared clinically superior merely because its engineering was adventurous. But together they decisively challenged the notion that staggered key rows were an unavoidable condition of typing.
What the Engineering Proved—and What Science Still Has to Test
The pioneers demonstrated design feasibility. They showed that a computer could accept typing input through sculpted columns, separated hand groups, thumb clusters or directional finger controls. They did not collectively prove that every such design prevents carpal tunnel syndrome or treats repetitive strain injury.
Research on posture offers a useful distinction. In a later study of 90 experienced office workers, Marklin and colleagues found that properly configured split keyboards reduced average ulnar wrist deviation from approximately 12° to within 5° of neutral. That is evidence of a benefit from changing keyboard orientation—even when the tested designs retained QWERTY key arrangements.
Changing the angle is valuable. Changing the geometry is a different question.
A split-staggered keyboard can change the direction the wrists face. A columnar, sculpted or radial-columnar keyboard also changes where the fingers travel to reach keys. To determine the additional value of that second intervention, researchers must compare physical key geometries directly and measure posture, movement, comfort, learning, typing performance and, when appropriate, clinical outcomes.
This is the research gap explored in Part 5: How Flawed Data Contaminated Science.
The Turning Point: Innovation Met a Familiarity Advantage
By 1992, the keyboard industry could no longer plausibly claim that a flat, row-staggered rectangle was the only technically workable option. Maltron, NEC, DataHand and Kinesis had already demonstrated multiple alternatives.
Yet invention is not the same as mass adoption. Alternative geometries could be more expensive to develop and manufacture, unfamiliar to buyers and demanding to learn. Their existence did not guarantee that large companies, employers or consumers would choose them.
That distinction sets up the central tension of the next chapter. When major manufacturers entered the ergonomic keyboard market in the early 1990s, they had to choose between changing the inherited key arrangement and keeping it familiar while adjusting the keyboard's shape. Microsoft Natural would become the most recognizable example of the second strategy.
Our criticism is not that split-staggered keyboards offer no ergonomic benefit. It is that commercial familiarity helped preserve an old physical arrangement at the very moment other engineers were demonstrating that a more fundamental redesign was possible.
Next in the series: Part 4: Commercial Success & The Trap investigates Apple, IBM, Cherry and Microsoft's competing designs—and how split-staggered keys became the familiar face of keyboard ergonomics.
Historical and Scientific References
- PCD Maltron. Maltron History. Manufacturer's account of Hobday, Malt, the December 1976 demonstration and 1977 company founding.
- Information Processing Society of Japan, Computer Museum. Keyboard Based on New Input System (M System). Original 1983 NEC development and PCWORD-M commercialization.
- Knight LW, Retter D. (1989). Datahand: Design, Potential, Performance, and Improvements in the Computer Keyboard and Mouse. Proceedings of the Human Factors Society Annual Meeting.
- HCI Museum. DataHand Keyboard. Historical exhibit and description of early production.
- Kinesis. About Kinesis / Our History. Kinesis founding in 1991 and Model 100 commercialization in 1992.
- Marklin RW, Simoneau GG, Monroe JF. (1999). Wrist and Forearm Posture from Typing on Split and Vertically Inclined Computer Keyboards. Human Factors, 41(4):559–569.
Evidence note: The timeline documents engineering history and original design intentions. It should not be read as a set of clinical trials demonstrating prevention or treatment of musculoskeletal disorders.
The typewriter's key geometry was a choice—not a law of nature.
