TypeMatrix 2030 vs. X-Bows: The Evolution of Ortholinear Ergonomics
Dr. Sig"The grid was the first step. The curve is the next evolution."
For over a decade, the TypeMatrix 2030 held a unique position in the ergonomic world. It was one of the first keyboards to boldly reject the staggered QWERTY standard in favor of a straight "matrix" (ortholinear) grid.
But in 2025, TypeMatrix users face a dilemma: hardware limitations. The 2030 relies on older scissor-switch membranes, lacks programmable software, and faces uncertain inventory availability.
Enter the X-Bows Knight Plus. We designed our Natural Radial Layout not to compete with the TypeMatrix philosophy, but to evolve it. If you love the logic of a grid but crave the feel of mechanical switches, X-Bows is the successor you have been waiting for.
At a Glance: The Evolution
| Feature | TypeMatrix 2030 | X-Bows Knight Plus |
|---|---|---|
| Layout Type | Ortholinear (Grid) | Radial (Curved Columnar) |
| Switch Type | Scissor-Switch Membrane | Mechanical (Hot-Swappable) |
| Wrist Angle | Parallel (Forces Ulnar Deviation) | Neutral (Natural Splay) |
| Customization | Hardware Toggles (Dvorak/Colemak) | Full QMK/VIA Software |
| Key Travel | Short (Laptop Feel) | Deep & Cushioned (4mm) |
1. The Shared Philosophy: Why We Both Reject "Stagger"
Both TypeMatrix and X-Bows agree on one fundamental truth: Row-staggered keyboards are broken.
Standard keyboards force your fingers to make diagonal, erratic jumps to reach keys. Both the TypeMatrix 2030 and X-Bows correct this by aligning keys in vertical columns.
- Reduced Finger Travel: Your fingers move straight up and down, not sideways.
- Center-Column Modifiers: Both keyboards move heavy-use keys (Enter, Backspace) to the center, offloading work from the weak pinky finger to the strong index finger or thumb.

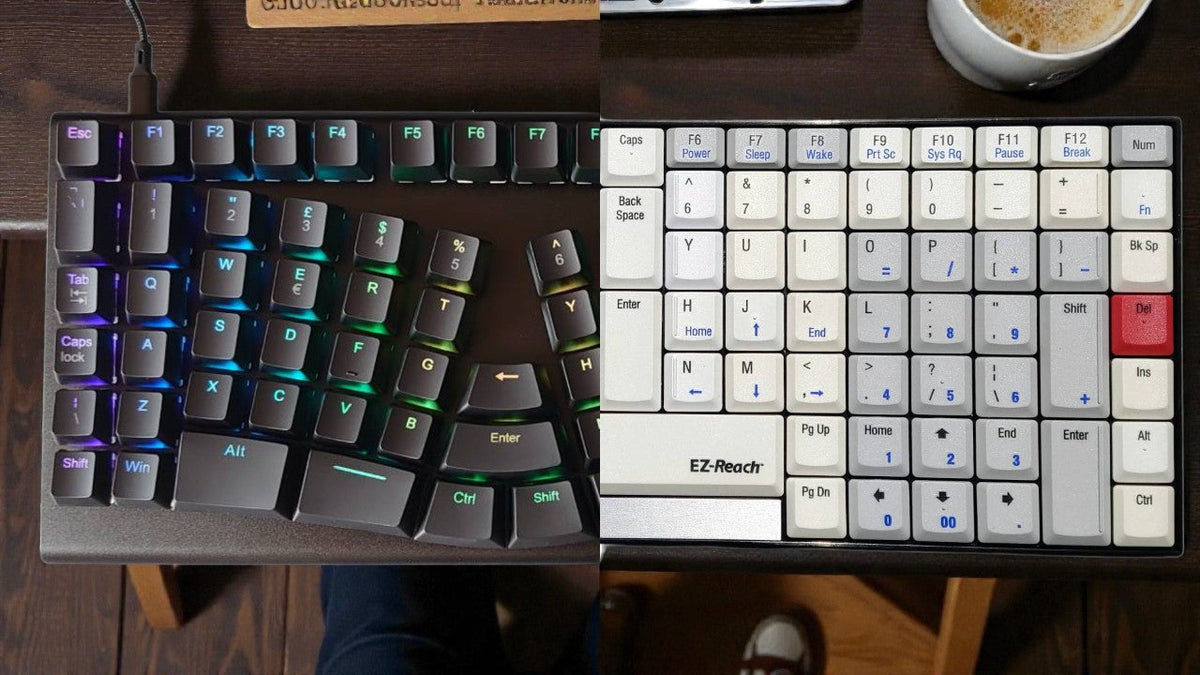

2. The Key Difference: Grid vs. Radial
This is where the evolution happens. TypeMatrix uses a strict Grid (Ortholinear) layout. X-Bows uses a Radial (Columnar) layout.
The TypeMatrix Grid
Great for finger movement, but it forces your wrists to stay perfectly parallel to each other. To type comfortably, you must keep your elbows wide and your forearms straight. If you type with your elbows close to your body (the natural posture), a straight grid still forces Ulnar Deviation (wrist twisting).
The X-Bows Radial Layout
We take the straight columns of the TypeMatrix and fan them out. This radial angle matches the natural geometry of your arms extending from your shoulders. It keeps your fingers aligned in columns while allowing your wrists to relax at a neutral angle, eliminating Ulnar Deviation without requiring you to change your elbow width.
3. The Hardware Upgrade: Membrane vs. Mechanical
The #1 request from TypeMatrix users has always been: "Make a mechanical version."
The TypeMatrix 2030 uses "scissor-switch" membranes (similar to older laptops). While low-profile, these switches require you to "bottom out" (press fully down) to register a keystroke. This repeated impact sends shockwaves up the finger joints.
X-Bows is fully mechanical.
- Low-Impact Typing: Our Gateron switches actuate halfway down. You don't need to bottom out, which significantly reduces impact shock on your joints.
- Hot-Swappable (Knight Plus): Don't like the feel? You can swap the switches yourself. Customize your actuation force to your specific biomechanical needs.
- Durability: Rated for 50-100 million keystrokes, compared to the limited lifespan of membrane domes.
4. Customization: Hardware Toggles vs. QMK Software
The TypeMatrix relies on hardware "dip switches" or toggles to switch between QWERTY and Dvorak. It is simple, but rigid.
X-Bows empowers you with full QMK/VIA Software support.
- Remap Any Key: Want "Space" on the left thumb and "Backspace" on the right? Done.
- Layers: Create a dedicated layer for coding, another for gaming, and another for data entry.
- Macros: Automate complex key sequences to save your fingers from repetitive stress.
Verdict: The Spiritual Successor
We have immense respect for TypeMatrix. They pioneered the idea that keys should be aligned with fingers, not typewriters.
However, for the modern professional seeking longevity, X-Bows takes that foundation and builds a house of iron on it.
