Not every keyboard labeled “ergonomic” changes the same things.
Some keyboards separate the hands. Some curve or tent the keybed. Some change the direction of the key columns. Others change key reach, thumb use, switch feel, or several of these factors at once.
So the most useful question is not simply, “Is this an ergonomic keyboard?” It is:
What does this keyboard change about the way my hands, wrists, and fingers move?
This guide explains the main design approaches, what each one changes, and how to compare them before you buy.
Quick answer: An ergonomic keyboard is designed to make sustained typing more compatible with neutral hand and wrist positioning and efficient finger movement. Different designs address different factors—including wrist angle, hand separation, finger reach, key-column direction, thumb use, key force, and forearm position. No single feature makes a keyboard ergonomic by itself.
5 things to look at when choosing an ergonomic keyboard
Ergonomics is a system, not a single feature. A keyboard may improve one factor while leaving another largely unchanged.
| Design question | What to examine |
|---|---|
| 1. Wrist position | Does the keyboard let your hands stay more in line with your forearms instead of requiring repeated outward or upward wrist bending? |
| 2. Finger direction | Do the key columns follow the directions your fingers naturally reach, or do your fingers repeatedly travel diagonally across a staggered grid? |
| 3. Reach distance | How far do your fingers move for frequently used letters, modifiers, editing keys, and navigation keys? |
| 4. Workload distribution | Are important keys concentrated on the outer fingers, or are some functions moved toward the center where other digits can share the work? |
| 5. Key feel and force | Does the switch type and operating force suit your typing style? Switch feel matters, but it does not replace good layout geometry. |
The U.S. Occupational Safety and Health Administration (OSHA) recommends keeping the wrists straight and in line with the forearms and notes that traditional keyboards can encourage sideways wrist bending. OSHA also notes that alternative keyboards may promote more neutral wrist postures, while the evidence is not conclusive that they prevent discomfort or injury.
Why the conventional keyboard deserves another look
Familiar does not necessarily mean anatomically ideal
The familiar row-staggered keyboard developed in the typewriter era and became the default for computers. That history explains why the layout is familiar; it does not mean every part of the geometry was optimized around the human hand.
Your fingers differ in length, range of motion, and direction. When your hand opens, the fingers do not all travel along identical parallel paths. Ergonomic keyboard design starts by asking how much of that anatomy can be reflected in the hardware.
Instead of training the hands to fit the keyboard, how much can the keyboard be shaped around the hands?
The main types of ergonomic keyboard
Split keyboards
A split keyboard changes the relationship between the left and right hand zones. Some use two physically separate halves; others build a fixed angle into a single chassis. The main variables are hand separation, opening angle, rotation, and—on some designs—tenting.
Curved or wave keyboards
Curved and wave-style keyboards change the surface shape or key heights to alter hand position and reach. The amount of curvature, key staggering, and wrist angle still varies widely from one model to another.
Tented keyboards
Tenting raises the inner portions of the keyboard so the hands do not remain completely flat against the desk. This primarily changes forearm rotation. Tenting is a separate design choice from key-column direction.
Ortholinear and columnar keyboards
Ortholinear and columnar designs move away from the conventional row stagger and align keys more consistently by column. Some keep those columns parallel; others stagger or angle them to better match finger lengths and reach.
Radial keyboards
A radial layout changes the direction of the key columns themselves. Rather than keeping every column parallel, straight columns fan outward so different fingers can travel in different directions.

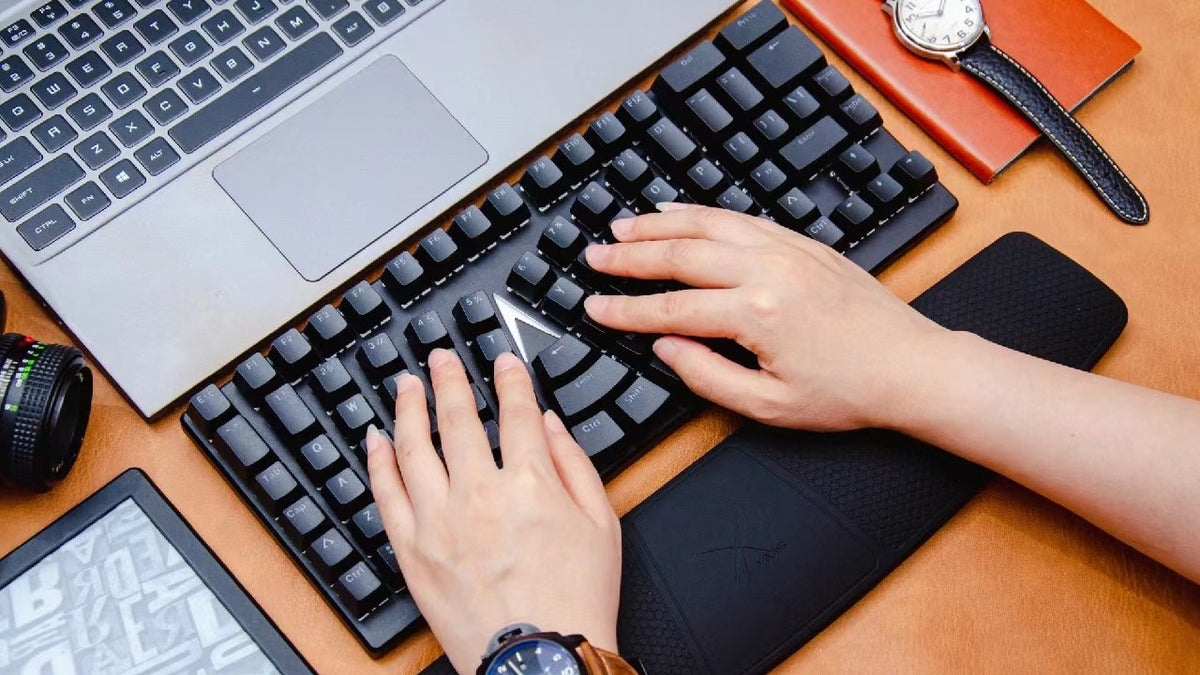

That is the core principle behind the classic X-Bows layout: straight radial-columnar key groups, angled left and right hand zones, and commonly used functions placed closer to the center of the keyboard.
Important distinction: “Split,” “tented,” “columnar,” and “radial” describe different design dimensions. A keyboard can combine several of them. For example, a fully split keyboard can also use radial or columnar key geometry.
How the major ergonomic designs differ
| Design approach | Main thing it changes | What still varies |
|---|---|---|
| Split | Distance/angle between the two hand zones | Column direction, tenting, thumb layout, switch type |
| Tented | Forearm rotation / hand tilt | Hand separation, column direction, reach |
| Curved / wave | Surface shape and key height | Wrist angle, column direction, thumb workload |
| Ortholinear / columnar | Alignment of keys into columns | Whether columns are parallel, staggered, or angled |
| Radial | Direction of the key columns | Hand separation, tenting, switch type, physical split |
A design question that is often overlooked: where should the work go?
Traditional keyboards give the thumbs relatively little to do
On a conventional keyboard, the thumbs are used mainly for the space bar while smaller fingers often handle modifiers and editing keys at the outer edges of the board.
X-Bows moves several frequently used functions toward the center, where the thumbs and nearby fingers can reach them with less lateral travel. On current X-Bows layouts, central keys include functions such as Enter, Backspace, Control, and Shift, depending on model and key mapping.
How X-Bows approaches ergonomic keyboard design
X-Bows combines several design ideas rather than relying on a single ergonomic label.
- Straight radial-columnar key geometry — the columns fan outward to better match the different directions the fingers reach.
- Angled left and right hand zones — classic X-Bows one-piece models build the hand angle into a stable chassis.
- Central thumb-accessible keys — several frequently used functions are moved toward the middle of the board.
- Mechanical switch choices — users can choose switch feel and force independently from the physical layout on supported models.
The X-Bows Nature, for example, is described as using a radial-columnar layout with a central thumb cluster and is offered in Windows and Mac layouts with multiple mechanical switch options. Other X-Bows models add different materials, programmability, wireless connectivity, or numpad configurations.
Can an ergonomic keyboard help prevent or reduce typing-related strain?
Prevention and risk reduction are central goals of ergonomics
Keyboard geometry can influence wrist posture, finger reach, repetitive movement, and how work is distributed across the hands. By reducing awkward wrist positions, excessive finger reach, and other repetitive stresses, an ergonomic keyboard can help reduce typing-related ergonomic risk factors and may help alleviate discomfort that is aggravated by keyboard use.
X-Bows was specifically designed to reduce the ergonomic stresses associated with prolonged typing by supporting more natural finger movement, straighter wrist positioning, and a more balanced distribution of work across the hands.
Ergonomic design cannot guarantee that every injury will be prevented or every symptom eliminated. RSI and carpal tunnel syndrome can have multiple contributing causes, including factors unrelated to keyboard use. If typing repeatedly causes pain, numbness, tingling, weakness, or loss of function, seek qualified medical advice in addition to improving the workstation and typing setup.
How to choose the best ergonomic keyboard for you
There is no single keyboard architecture that is best for every person. Start with the movement or setup issue you most want to change.
| Ask yourself | What it points toward |
|---|---|
| Do I want adjustable hand separation? | A fully split keyboard gives the most freedom to move the halves independently. |
| Do I want the key columns themselves to follow finger direction? | Look closely at columnar and radial layouts rather than only the split angle. |
| Do I want more functions near the thumbs? | Compare the center/thumb cluster, not just the overall keyboard shape. |
| Do I want a single stable keyboard? | A fixed-split or one-piece radial design may be simpler to position and transport. |
| Do switch feel and force matter to me? | A mechanical keyboard gives more switch choices, but the physical layout still determines the geometry. |
| Am I willing to adapt to a changed layout? | More significant geometry changes usually require some muscle-memory adjustment. |
The most useful comparison is not which product uses the word “ergonomic” most confidently. It is which design changes the factors that matter to you while remaining practical enough to use every day.
How Long Does It Take to Adapt to X-Bows?
This is one of the most common questions we hear from people considering an ergonomic keyboard.
X-Bows was specifically designed to make the transition easier by preserving the familiar QWERTY letter arrangement. You do not need to learn a new alphabetic layout. Instead, your hands are building new muscle memory for the radial key columns, straighter finger paths, and centrally positioned thumb keys.
For most users, that adjustment is relatively short.
These figures come from our survey of 334 X-Bows users. They describe customer-reported adaptation time rather than a guaranteed timeline for every user.
Your typing speed may drop during the first few days as old muscle memory gives way to the new layout. Many users find that the central thumb keys and radial finger paths begin to feel natural surprisingly quickly.
Your first week with X-Bows
We created a practical 7-day transition guide explaining what to expect during the first few days, how to practice, and how to build the new muscle memory efficiently.
Read “Your First Week with an Ergonomic Keyboard”
Ready to compare the designs?
Explore X-Bows Ergonomic Keyboards Compare Split vs Radial Layouts
Frequently asked questions
What makes a keyboard ergonomic?
An ergonomic keyboard changes one or more aspects of hand, wrist, or finger positioning to reduce unnecessary reach or awkward posture. Relevant design factors include hand angle, separation, key-column direction, reach distance, thumb use, key force, and forearm position.
Is a split keyboard automatically more ergonomic?
No. Splitting or angling the left and right hand zones can change hand separation and wrist position, but it does not determine key-column direction, reach, tenting, thumb workload, or switch force. Those factors vary by design.
Is a mechanical keyboard automatically ergonomic?
No. “Mechanical” describes the switch mechanism under the keys. Ergonomics depends much more on how the keyboard affects posture and movement. A keyboard can be mechanical while keeping conventional row-staggered geometry.
What is a radial keyboard layout?
A radial keyboard uses key columns that fan outward rather than remaining parallel. On X-Bows, the columns themselves are straight; their different orientations create the radial pattern intended to better follow the directions the fingers reach.
Is X-Bows a split keyboard?
Classic one-piece X-Bows models use angled left and right hand zones in a single chassis, often described as a fixed-split approach, combined with radial-columnar key geometry. “Split” and “radial” describe different design choices, so the concepts can also be combined in fully split products.
Can an ergonomic keyboard help prevent RSI or carpal tunnel syndrome?
Yes. Preventing and reducing work-related musculoskeletal strain is one of the fundamental purposes of ergonomics. An ergonomic keyboard can help reduce known occupational risk factors associated with repetitive computer work, such as awkward wrist angles, excessive finger reach, repetitive movement, and unnecessary muscular strain.
For people who already experience discomfort related to typing, reducing those ergonomic stresses may also help alleviate symptoms. Many X-Bows customers with wrist, hand, or RSI-related symptoms have reported meaningful improvement after switching to X-Bows.
However, RSI and carpal tunnel syndrome can have multiple contributing causes, including factors unrelated to keyboard use. An ergonomic keyboard therefore cannot guarantee prevention or eliminate symptoms in every individual, and it should not be presented as a cure for conditions caused by other medical factors.
Further reading: OSHA: Computer Workstations — Keyboards · X-Bows FAQ · X-Bows ergonomic design research
